Fully Automated HAST Chamber with 100%RH Humidity Range and 0.1ºC Resolution Accuracy for IC Package Testing

Name: Fully Automated HAST Chamber with 100RH Humidity Range and 01ºC Resolution Accuracy for IC Package Testing
Brand: YOUBI
Price: 1 USD

Quality Fully Automated HAST Chamber with 100%RH Humidity Range and 0.1ºC Resolution Accuracy for IC Package Testing for sale

Certification : CE,ISO

MOQ : 1 Unit

Price : Negotiable

Brand Name : YOUBI

Model Number : UP-6124

Place of Origin : CHINA

Payment Terms : T/T,D/P,Western Union,Paypal,Money Gram

Supply Ability : 30 Unit/month

Delivery Time : 5-15 work days

Packaging Details : Professional Export Wooden Box Packaging

Product name : Hast test chamber

Temp Range : 100ºC ~ +132ºC saturated-steam temperature

Humidity Range : 100%Rh

Resolution Accuracy : 0.1ºC

Time Scale : 0 to 999 Hours Adjustable

Control Accuracy : ≤± 0.5ºC

Control Method : Button or LCD Controller, Optional

Custom Service : OEM,ODM

Contact Now

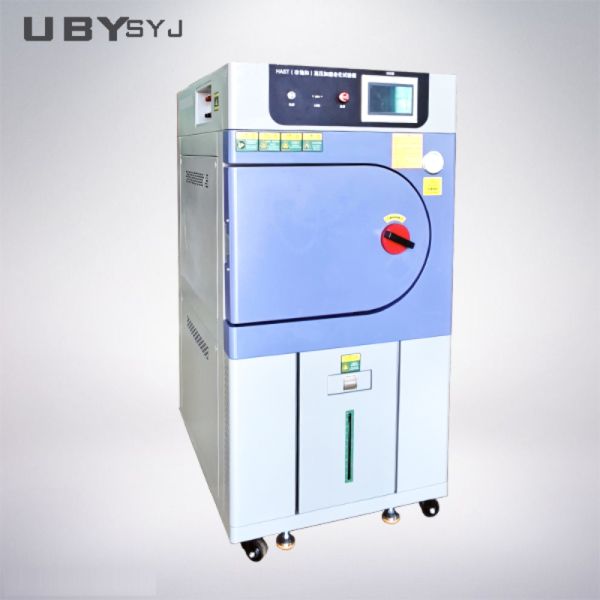

UP-6124 Fully Automated HAST Chamber for Highly Accelerated Stress Testing of IC packages

High Pressure Accelerated Aging Test Chamber is to test products and materials in harsh temperatures, saturated humidity (100%R.H.[saturated water vapor] and pressure environment its high humidity resistance test equipment. For example, test the absorption rate of printed circuit board (PCB or FPC), the moisture resistance of semiconductor packaging, the circuit break caused by corrosion in the dynamic metallization area, and the short circuit caused by pollution between the package pins.

Features:
1. Safety device for the pot: If the inner box is not closed , the machine can not start
2. Safety Valve: When the inner box's pressure higher than the machine's undertake value, it will self-relieve.
3. Double overheat protection device: When inner box's temperature is too high, it will alarm, and Automatic cut off the heating power.
4. Cover protection: The inner box's cover is made of aluminum alloy, can protect the worker from scald.

Specifications:

Temp Range	100ºC ~ +132ºC saturated-steam temperature	100ºC ~ +143ºC saturated-steam temperature
Pressure Range	0.2~2kg/cm2(0.05~0.196MFa)	0.2~3kg/cm2(0.05~0.294MPa
Pressurization Time	About 45min	About 55min
Temp Uniformity	<±0.5ºC
Temp Fluctuation	≤±0.5ºC
Humidity Range	100% R.H (saturated-steam humidity)
Controller	Button or LCD controller, optional
Resolution	Temp: 0.01ºC Humidity: 0.1% RH, Pressure 0.1kg/cm2, Voltage: 0.01DCV
Temp Sensor	PT-100 ohnΩ
External Material	SUS 304 with Painting coating
Internal Material	SUS 304 with Glass Wool
BIAS Terminal	Optional, with extra cost, please contact OTS
BIAS Terminal	Optional, with extra cost, please contact OTS
Power	3 Phase 380V 50Hz/ customized
Safety System	Sensor protection; Phase 1 High temp protection; Phase 1 High pressure protection; Voltage overload; Voltage monitoring; Manual adding water; Automatic depressurize and automatic water withdraw when machine in fault; Fault code displays for checking solution; Fault in record; Grounding wire leakage; Motor overload protection;

Fully Automated HAST Chamber with 100%RH Humidity Range and 0.1ºC Resolution Accuracy for IC Package Testing

Our service:
During the whole business process, we offer a Consultative Selling services.
1)Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm.
Then quote the most suitable price according to customer requirements.

2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process.
After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration(as per customer requirements). Check and test all the details and then arrange packing.
Delivering the products is confirmed shipping time and informed the customer.

4)Installation and after-sale service:
Defines installing those products in the field and providing after-sales support.

FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
If there is no stock, normally, the delivery time is 15-20 working days after payment is received;
If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
